Download and Run

What You'll Need

Configure a network that includes:

  • A development system (to run Console)
  • A provisioned or unprovisoned Intel® AMT device

What You'll Do

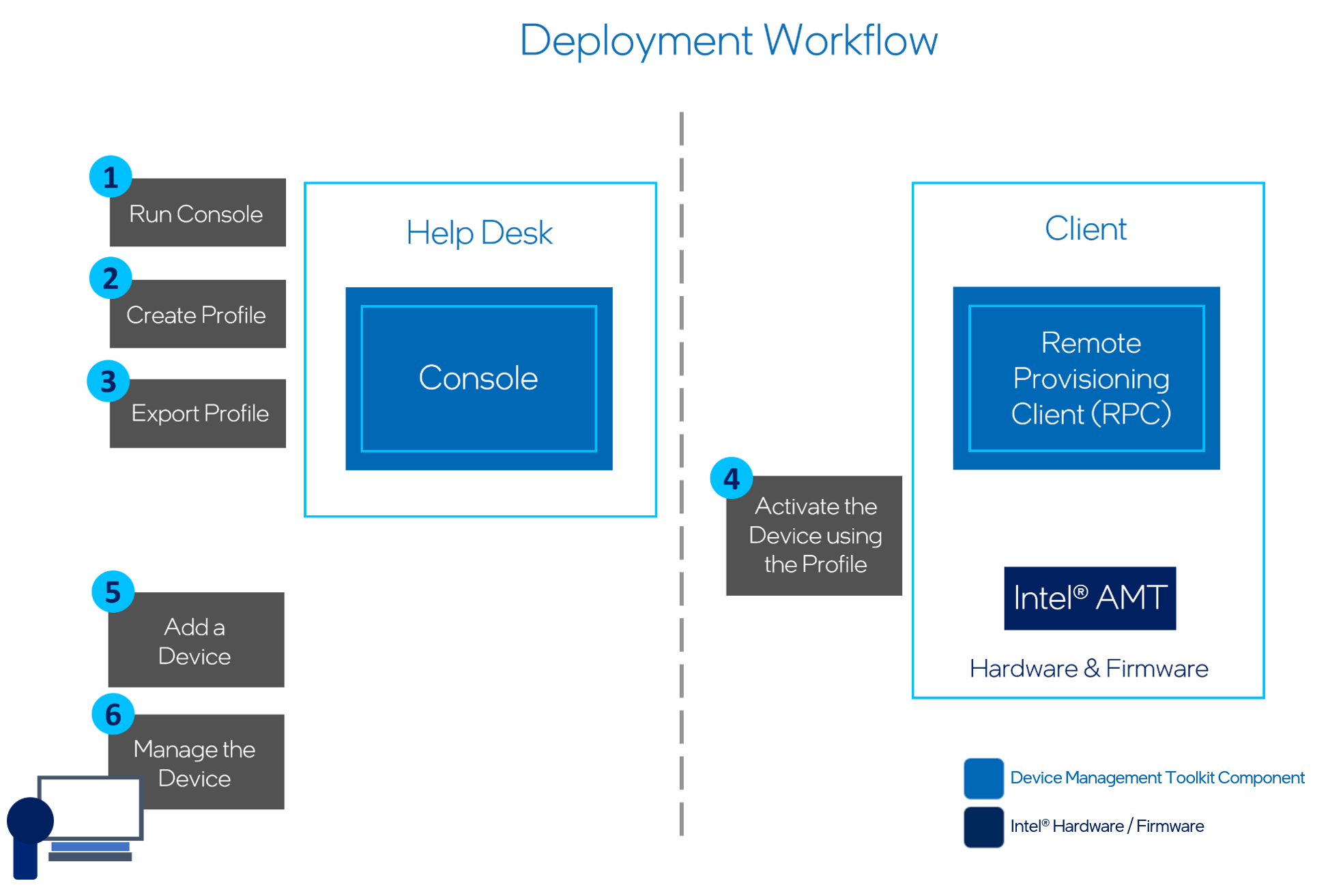

Figure 1: Get Started with Console
Figure 1: Get Started with Console

To complete a deployment:

  1. Download and run Console
  2. Create a CCM Profile or ACM Profile
  3. Export Profile
  4. Activate and configure an Intel® AMT device
  5. Add the device to the Console
  6. Manage the device using Console

Note - For devices that are already activated in ACM or CCM

If your Intel AMT device is already activated in CCM or ACM, you can skip steps 2, 3 and 4 after completing step 1 and proceed directly to Add a device to Console.

Download

  1. Find the latest release of Console under Github Releases.

  2. Download the appropriate binary assets for your OS and Architecture under the Assets dropdown section.

    Note - Warnings when Downloading from Github

    If downloading Console on Windows, a warning may appear and require approval to continue the download.

Configuration

  1. Run the executable, and a terminal will open containing the Console process.

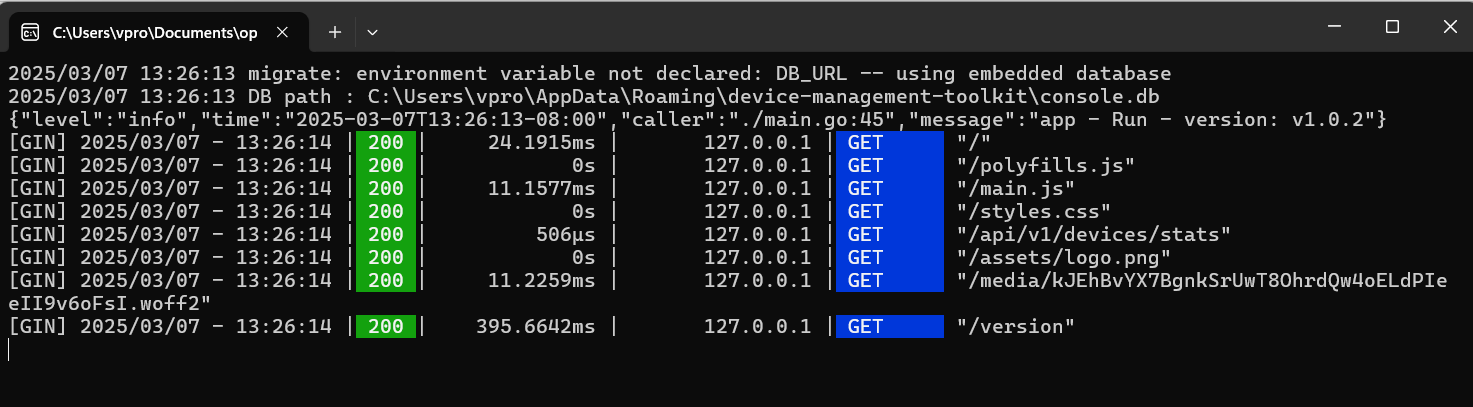

    Figure 2: Console Start
    Figure 2: Console Start

  2. Type Y in the terminal and press Enter to store the Database Key in the Operating Systems Credentials Manager.

    Note - Encryption Key Information

    Console automatically stores this 32-character key in Operating System's credential manager, such as Windows Credential Manager, under the name device-management-toolkit. This key is used to encrypt sensitive data before it is stored in the database.

  3. The executable automatically generates a config.yml file in the /config directory, relative to where the executable is run.. A default User Name and Password for the console login is stored in the config.yml file. To change the User Name and Password, edit the file and update adminUsername and adminPassword fields.

    app:
  name: console
  repo: open-amt-cloud-toolkit/console
  version: DEVELOPMENT
  encryption_key: ""
  allow_insecure_ciphers: false
http:
  host: localhost
  port: "8181"
  allowed_origins:
    - "*"
  allowed_headers:
    - "*"
logger:
  log_level: info
postgres:
  pool_max: 2
  url: ""
ea:
  url: http://localhost:8000
  username: ""
  password: ""
auth:
  disabled: false
  adminUsername: standalone
  adminPassword: G@ppm0ym
  jwtKey: your_secret_jwt_key
  jwtExpiration: 24h0m0s
  redirectionJWTExpiration: 5m0s
  clientId: ""
  issuer: ""

Run

  1. Close the terminal if Console is already running, then rerun the executable for the configuration changes to take effect.

  2. Console is now successfully running! A browser window will open running http://localhost:8181 where you can access the Console UI and start adding devices.

    Success

    Figure 3: Console Process Startup
    Figure 3: Console Process Startup

Login

  1. Log in to Console using the set credentials, adminUsername and adminPassword.

    Example

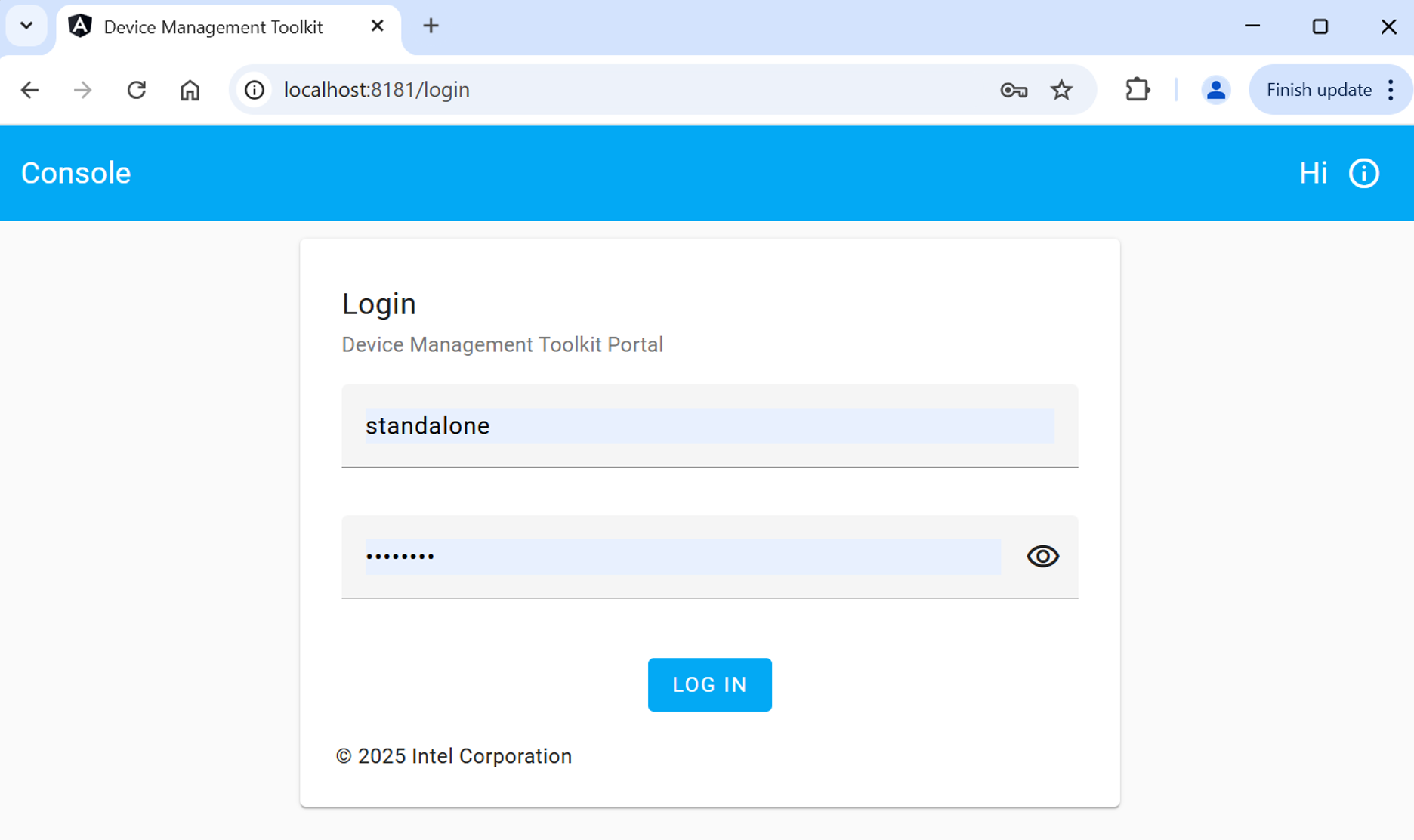

    Figure 4: Console UI Startup
    Figure 4: Console UI Startup

Next up

Profiles provide configuration information to the AMT Firmware during the activation process with the Remote Provisioning Client (RPC). Profiles also distinguish between activating in:

Client Control Mode (CCM): This mode offers all manageability features including, but not limited to, power control, audit logs, and hardware info. Redirection features, such as KVM or SOL, require user consent. The managed device will display a 6-digit code that must be entered by the remote admin to access the remote device via redirection.

Create a CCM Profile

Admin Control Mode (ACM): ACM mode supports all manageability features without requiring user consent. This means it is not necessary to have a person on-site to remote in and manage an edge device. In most IoT use cases, edge devices such as digital signage or kiosks may not be easily accessible or have available employees nearby. ACM mode proves immensely helpful in these scenarios.

Create an ACM Profile
